Users are provided a specialized screen for easy method and collection sequence creation.
Tabular and visual method creation
The visual well-selection feature empowers users to define collection ranges with a point-and-click, exactly targeting wells without the guesswork.
Similarly, standard tabular sample creation can be confirmed visually for the greatest confidence.

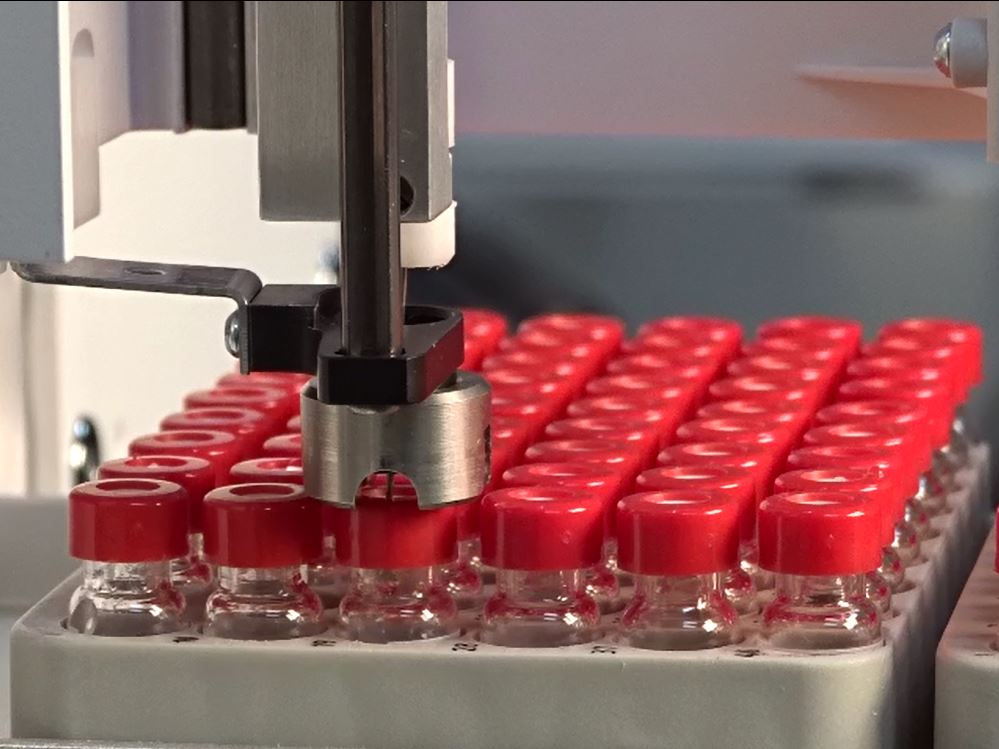

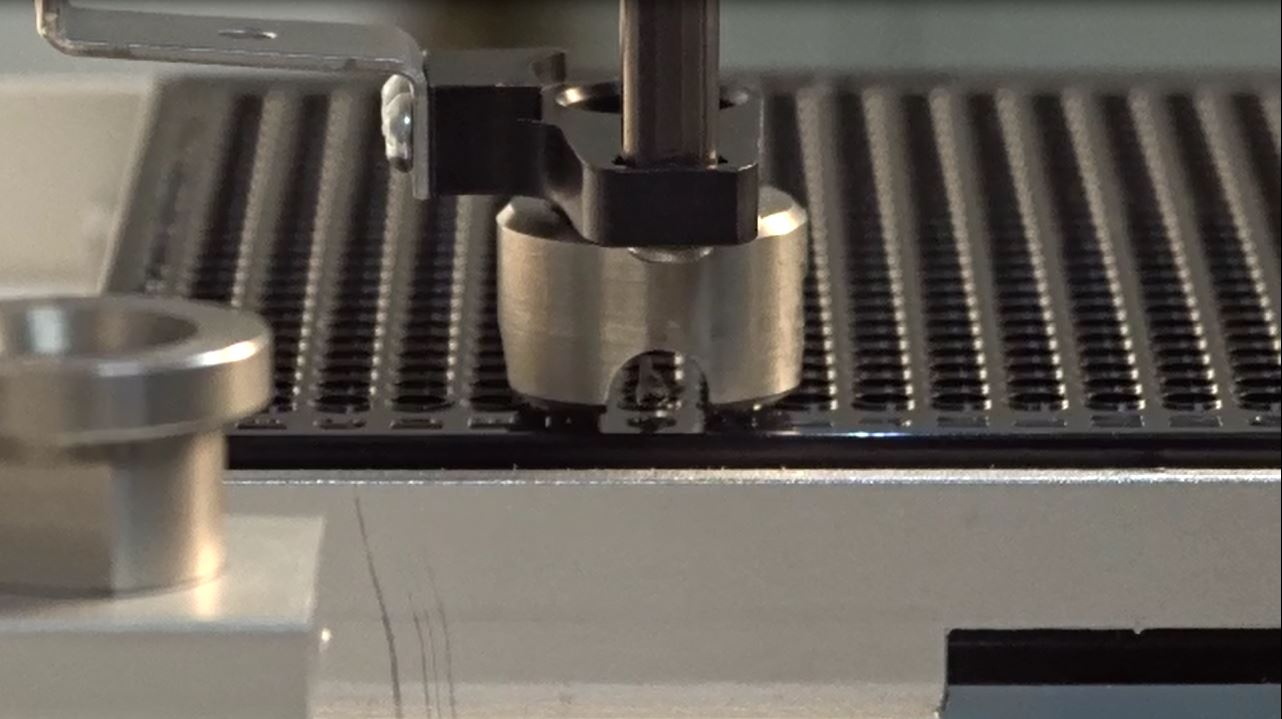

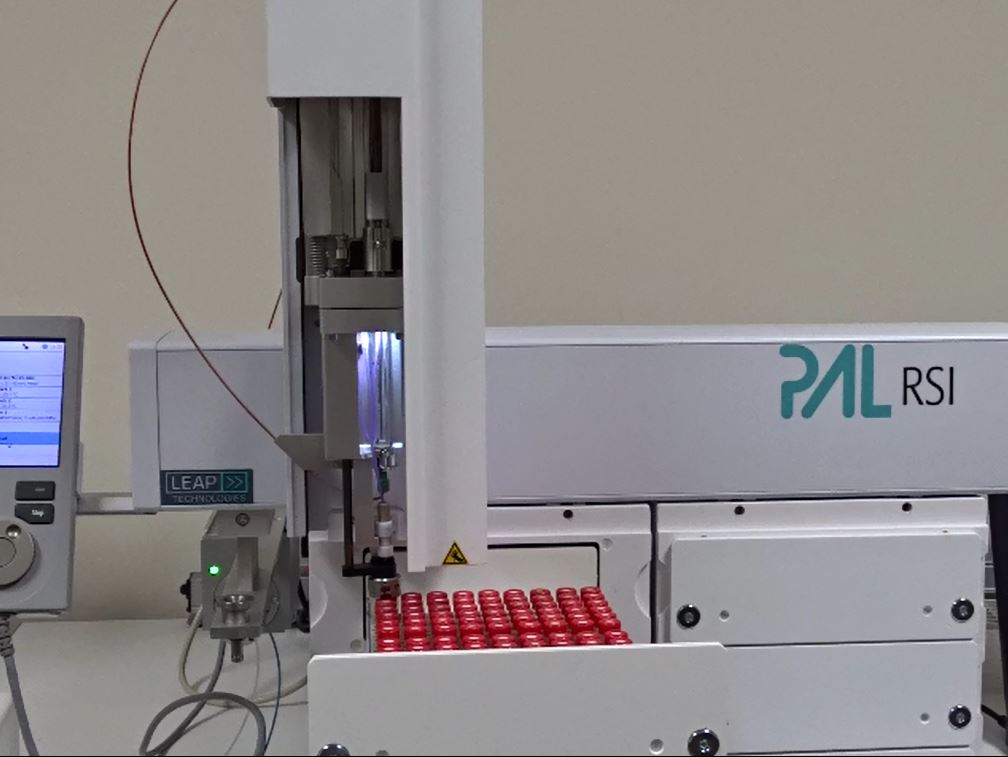

The precision engineered and long lasting dynamic flow reservoir (DFR) allows the MFx Collector to continue collecting
chromatographic flow while the automation is moving between wells, resulting in zero-loss.
The design achieves a turbulence-free, fully optimized flowpath for collection without peak dispersion.
Undisturbed flowpath for minimal peak diffusion
While flow to the buffer region remains constant during both well filling and robot movement, the buffer region will expand as the DFR travels between wells. This retracts any hanging droplets, and avoids peak diffusion by allowing continuous flow.
The buffer region contracts to resume dispensing at the next well.
